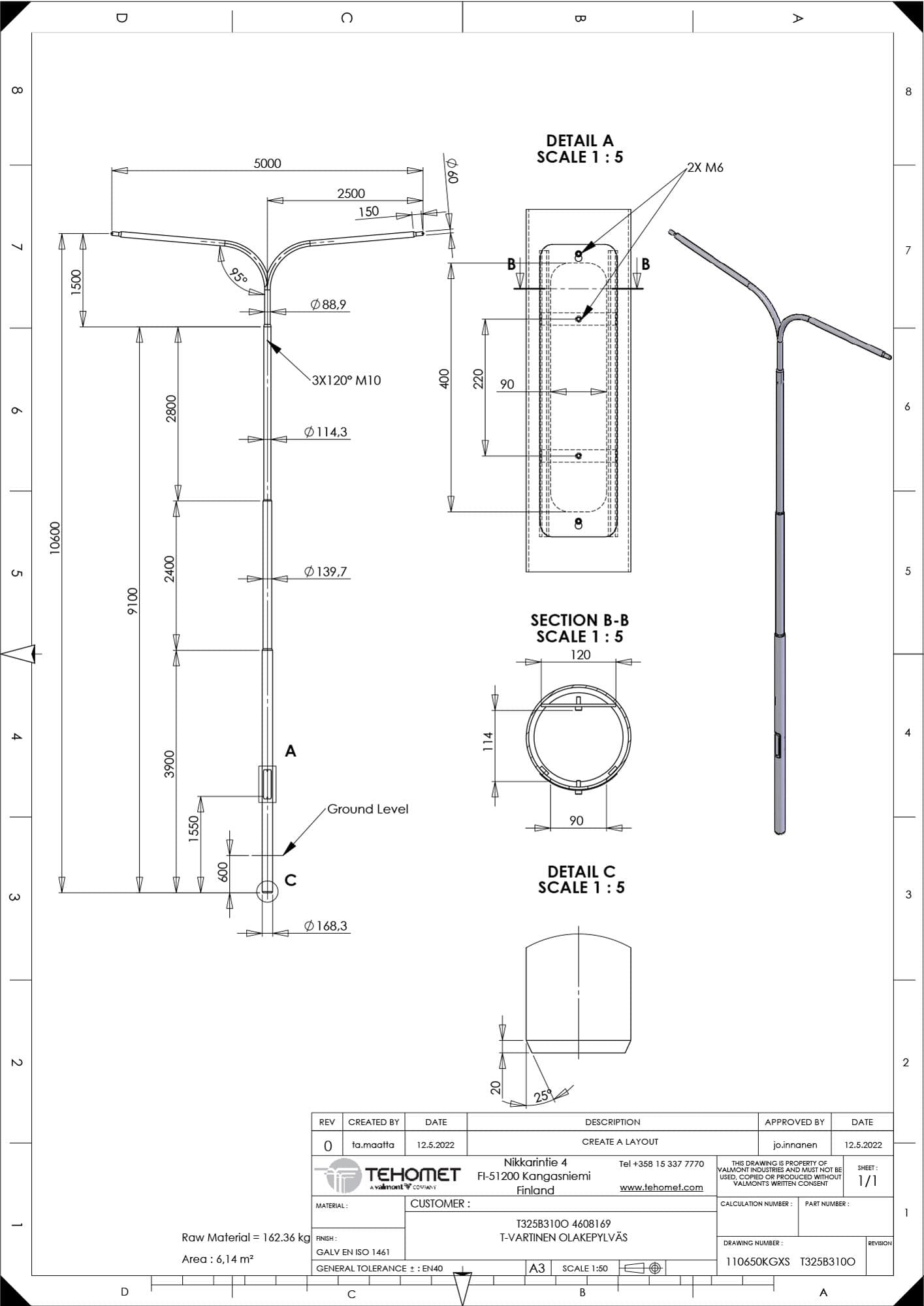

T325B310O
Product number: T325B310O
Electrical number: 4608169
Tehomet stepped poles
Tehomet’s stepped poles are manufactured from high-quality low-silicon steel. The joints are made using environmentally friendly cold moulding technology. This ensures joint concentricity between all the different sizes of tubing and, thanks to the method’s low energy consumption, also a low environmental impact.
Dimensioning of products: standard SFS-EN 40-3-3
Manufacture of products: standard SFS-EN 40-5
Raw material: low-silicon steel (Si + P ≤ 0.04%)
Galvanizing: international standard SFS-EN ISO 1461, layer thickness typically <90 μm.
Luminaire fitting for conical poles: diameter 60 mm and length 100 mm.
Weight (kg)
173
Material
steel
Pole shape
stepped
Lighting height (m)
10
Shaft top diameter (mm)
114
Arm/cross arm type
two-armed
Arm outreach/cross arm width (mm)
2500
Arm diameter (mm)
89
Spigot diameter (mm)
60
Embedding (mm)
600
Base diameter (mm)
168
Door width x height (mm)
90×400
Connection compartment internal dimensions (mm)
80×115
Distance door bottom to ground (mm)
950
EN40 capacity FI (21 m/s, CAT2, class A) m²
0,26
