Tehomet conical poles

Tehomet’s conical poles offer a modern solution for road and street lighting. Their conical shape ensures an optimal ratio between the pole’s load capacity and its aesthetic appearance.

Standard-compliant conical poles have a base chamfer to facilitate installation and centering in a prefabricated foundation. The base chamfer also evenly distributes loads from the steel to the concrete.

Seamless conical shafts guarantee a visually flawless solution, and especially when the poles are painted or thermoplastic coated.

Their simple and stylish shaft can be easily paired with a broad range of arms and luminaries of various styles.



Dimensioning of products: standard SFS-EN 40-3-3

Manufacture of products: standard SFS-EN 40-5

Raw material: low-silicon steel (Si + P ≤ 0.04%)

Galvanizing: international standard SFS-EN ISO 1461, layer thickness typically <90 μm.

Luminaire fitting for conical poles: diameter 60 mm and length 100 mm.

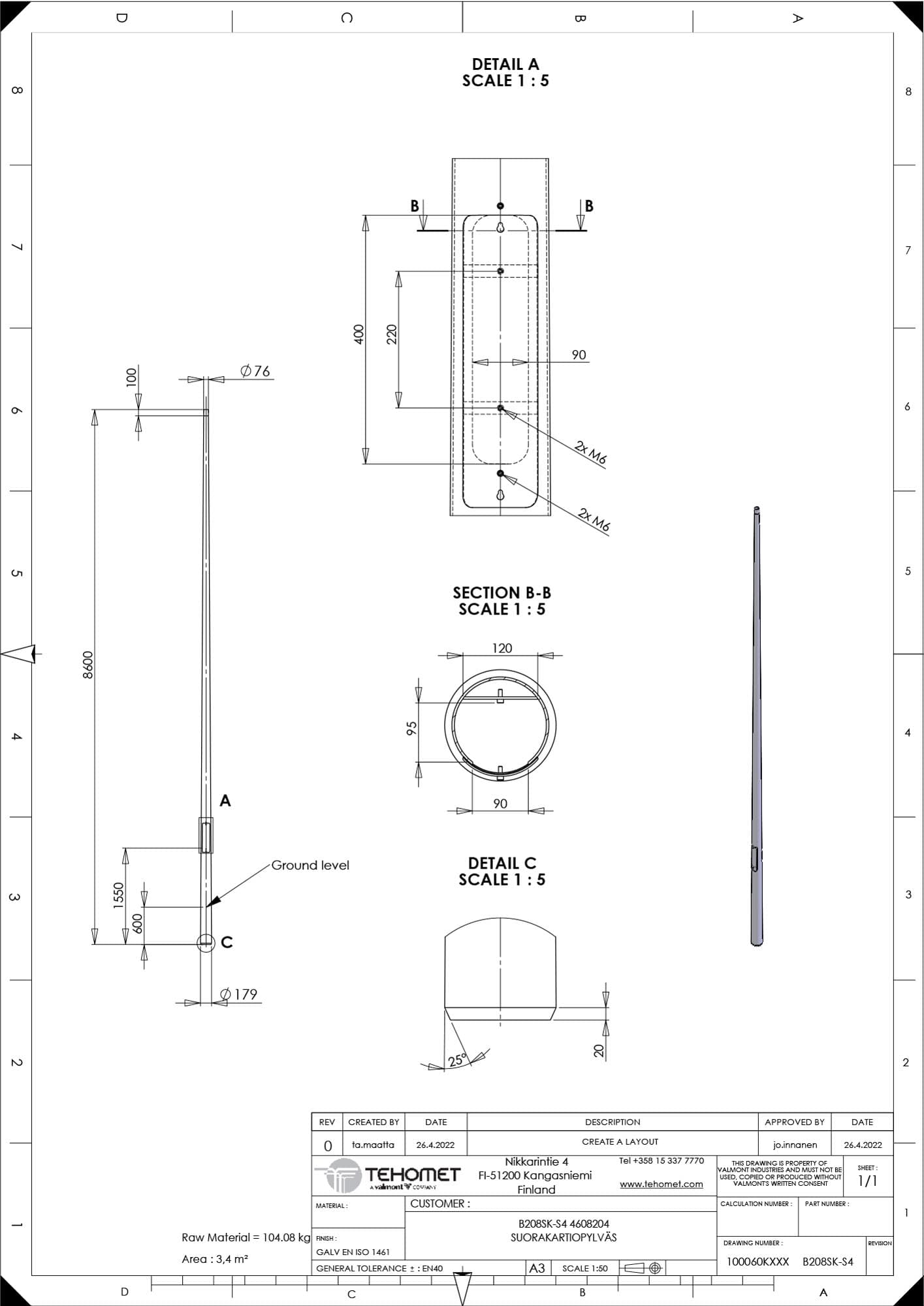

B208SK-S4

Weight (kg)

110

Material

steel

Pole shape

conical

Lighting height (m)

8

Shaft top diameter (mm)

60

Arm/cross arm type

no arms

Arm outreach/cross arm width (mm)

–

Arm diameter (mm)

–

Spigot diameter (mm)

76

Embedding (mm)

–

Base diameter (mm)

179

Door width x height (mm)

–

Connection compartment internal dimensions (mm)

–

Distance door bottom to ground (mm)

–

EN40 capacity FI (21 m/s, CAT2, class A) m²

–
