Kaisla Park 5
Electrical number: -
Product group: Standard wooden poles
Product number: Kaisla Park 5

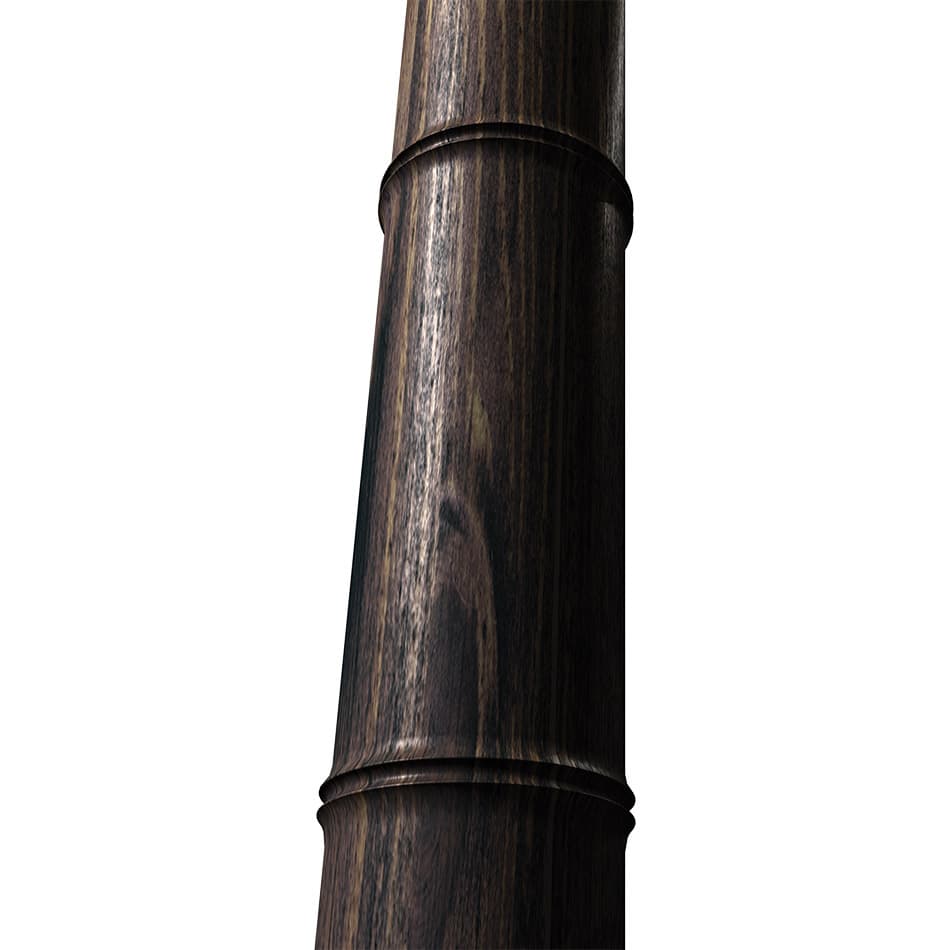

Reed grooves in a round pole profile
Kaisla – the more decorative version of our popular model Inari – provides a refreshing solution to outdoor lighting. The pole’s surface has been worked with beautiful grooves to liven up its clean cylindrical shape and flat surface.

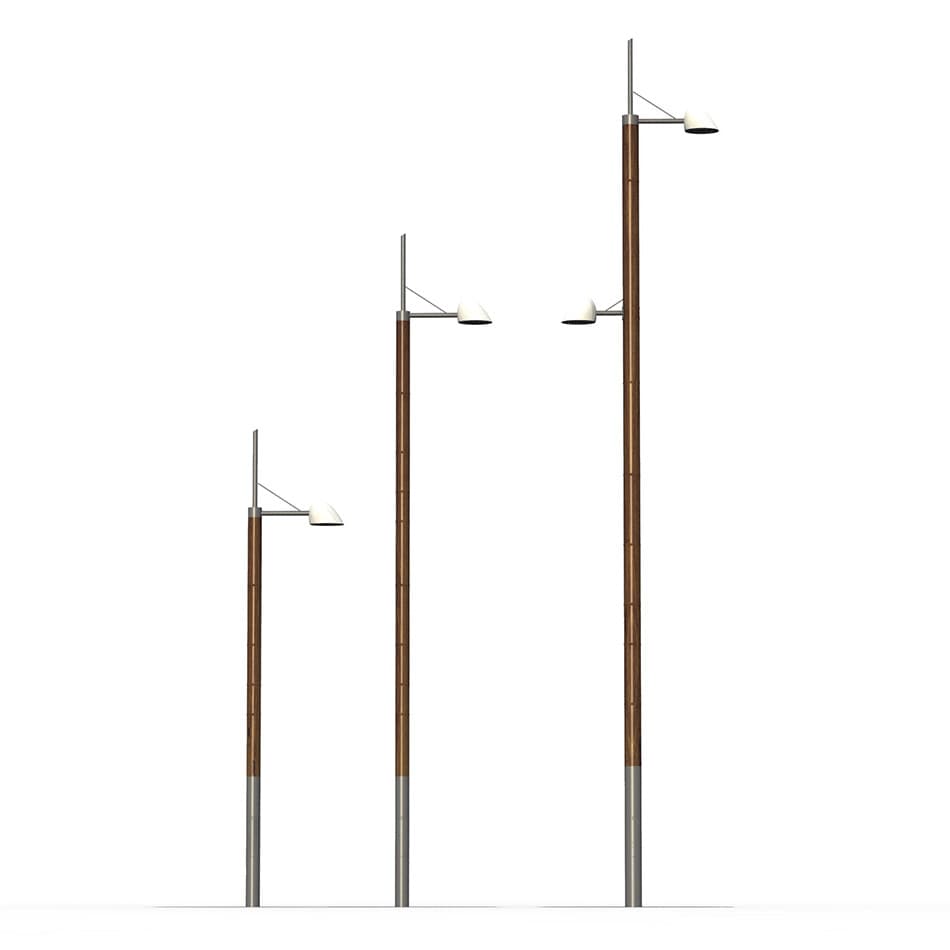

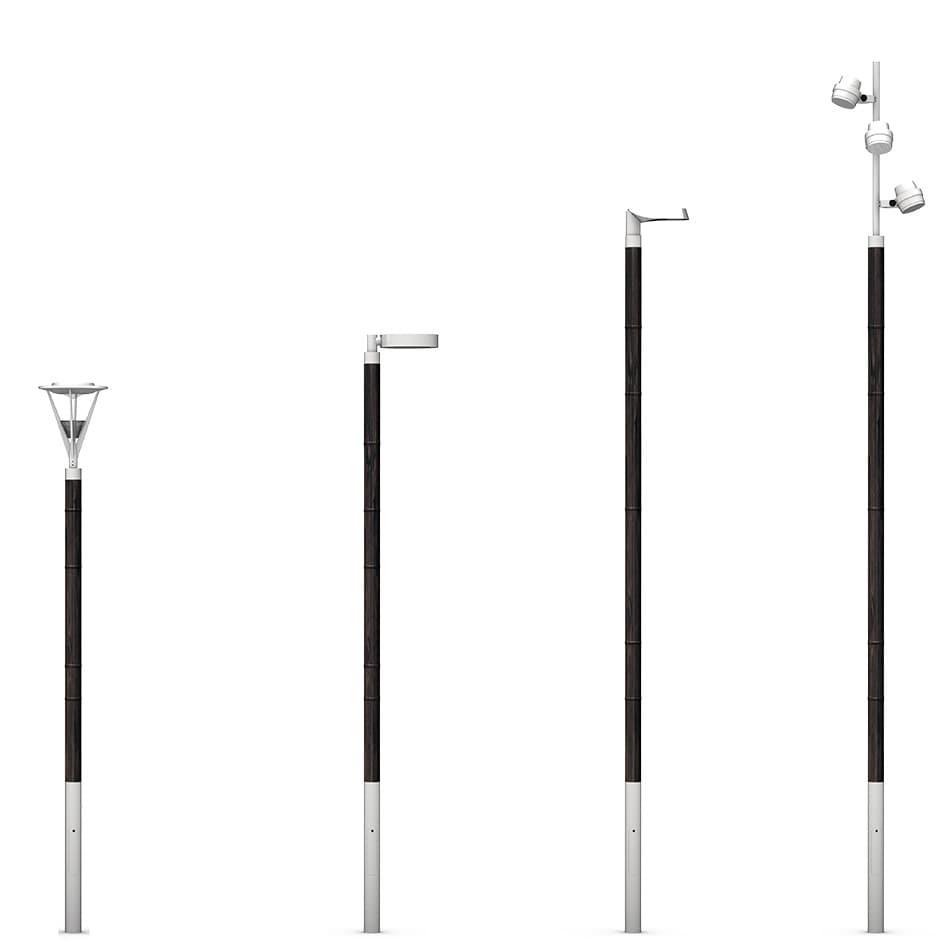

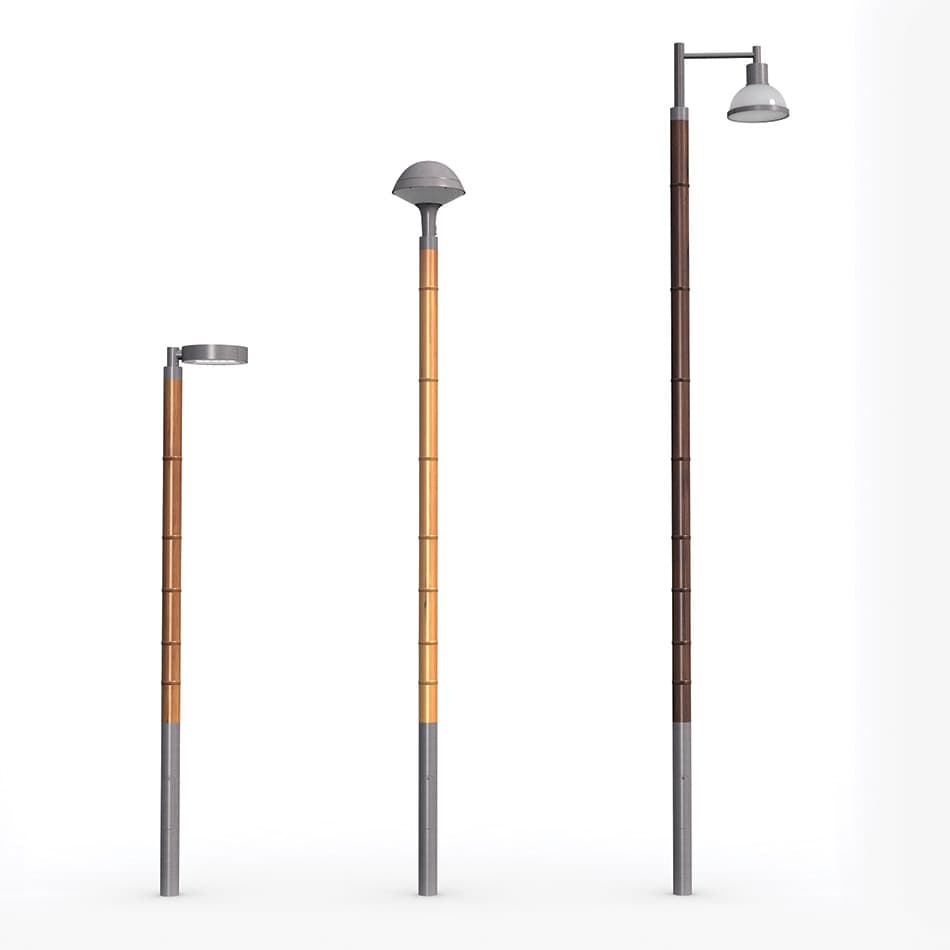

Kaisla can easily be paired with a diverse range of either pole-top and shaft-mounted luminaires.
We recommend Kaisla for parks and gardens.
Download product card Share link to email Report an error
Share this article
Technical specs
Weight (kg)
52
Material
wood/steel
Pole shape
even thickness
Lighting height (m)
5
Shaft top diameter (mm)
140
Arm/cross arm type
no arms
Spigot diameter (mm)
60/76
Embedding (mm)
500
Base embedding diameter (mm)
140
Base diameter (mm)
140
Base height (mm)
1300
Door width x height (mm)
85x400
Connection compartment internal dimensions (mm)
80x90
Distance door bottom to ground (mm)
500
EN40 capacity FI (22 m/s, CAT2, class A) m²
0,93
Foundation
Foundation with embedding
Embedding 500 mm
For example, we recommend the following Lujabetoni concrete bases for this product
| Product type | Electrical number | |
|---|---|---|
| Option 1 | RBJ-3B | 4607233 |
| Option 2 | RBJ-3 RST | 4607207 |
| Rubber protector for this pole and base |
235/126K | 4607392 |
Surface treatment
Surface treatment of wooden parts
The long service life of wooden poles requires a proven surface treatment. We use a surface treatment system developed by the Finnish Teknos. Below you will find samples of the standard colors of Tehomet’s wooden light poles.
Read more about wood surface treatment on the Wood Protection and Surface Treatment page.
Surface treatment of steel parts
Steel parts are galvanized according to international standard SFS-EN ISO 1461, layer thickness typically <90 μm.
You can see the standard colors of the metal parts of the wooden light poles below. Read more about our painting service on the Painting Service page.
