Kiaro 4
Electrical number: -
Product group: Decorative wooden poles
Product number: Kiaro 4

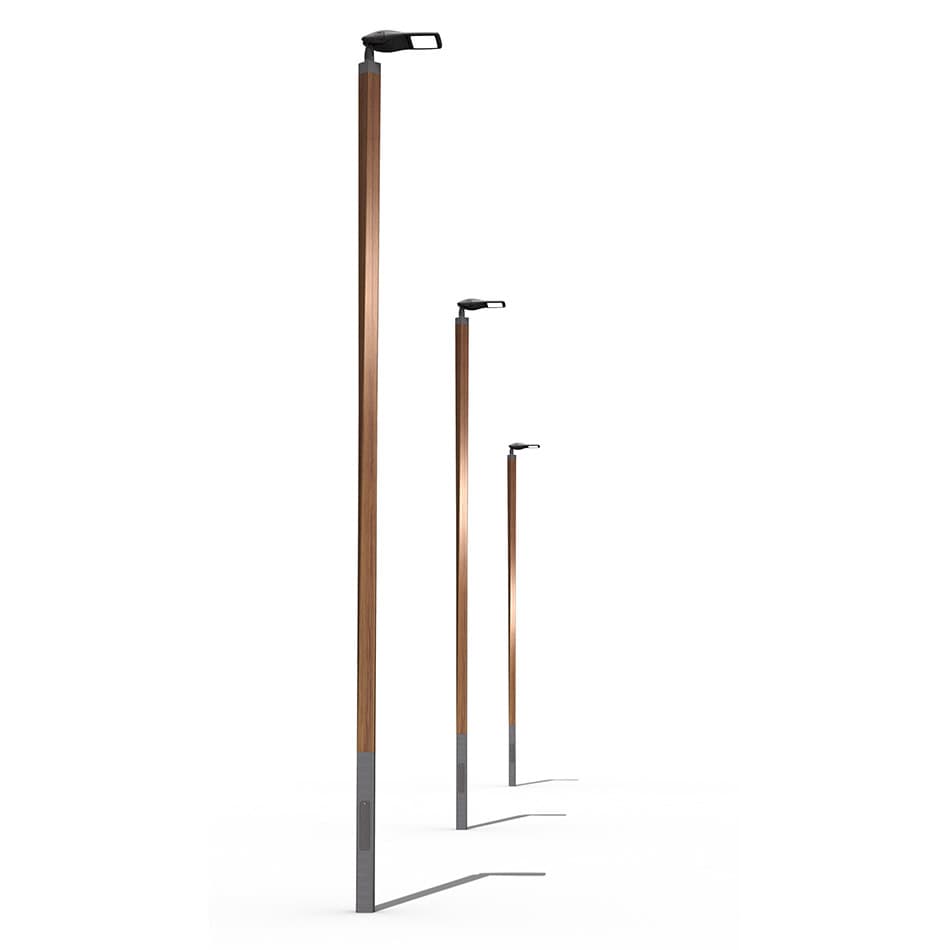

Kiaro wooden pole
Tehomet’s eye-catching new model, Kiaro, has a basic square shape with a unique and playful twist: it rotates 90 degrees around its longitudinal axis.
The luminaire can be attached to either the top of the pole or an arm.
We recommend Kiaro for
- Parks and gardens
- Pedestrian and cycle lanes
Download product card Share link to email Report an error
Share this article
Technical specs
Weight (kg)
50
Material
wood/steel
Pole shape
conical
Lighting height (m)
4
Shaft top diameter (mm)
100
Arm/cross arm type
no arms
Spigot diameter (mm)
60/76
Embedding (mm)
600
Base embedding diameter (mm)
114
Base diameter (mm)
140
Base height (mm)
1300
Door width x height (mm)
85x400
Connection compartment internal dimensions (mm)
80x105
Distance door bottom to ground (mm)
500
EN40 capacity FI (22 m/s, CAT2, class A) m²
2,53
Foundation
Foundation with embedding
Embedding 600 mm
For example, we recommend the following Lujabetoni concrete bases for this product
| Product type | Electrical number | |
|---|---|---|
| Option 1 | RBJ-3B | 4607233 |
| Option 2 | RBJ-3 RST | 4607207 |
| Rubber protector for this pole and base |
235/103K | 4607386 |
Foundation with flange plate
We recommend Tehomet flange c-c 200 for this product
Surface treatment
Surface treatment of wooden parts
The long service life of wooden poles requires a proven surface treatment. We use a surface treatment system developed by the Finnish Teknos. Below you will find samples of the standard colors of Tehomet’s wooden light poles.
Read more about wood surface treatment on the Wood Protection and Surface Treatment page.
Surface treatment of steel parts
Steel parts are galvanized according to international standard SFS-EN ISO 1461, layer thickness typically <90 μm.
You can see the standard colors of the metal parts of the wooden light poles below. Read more about our painting service on the Painting Service page.
