Koli 10
Electrical number: -
Product group: Standard wooden poles
Product number: Koli 10
Koli – a stylish and restrained wooden pole for parks, roadsides and cycle paths
A refined edge for parks and roadsides
Koli’s immense popularity is not exactly a surprise – it truly is an elegant light pole. The clean lines of Koli’s rigid conical square profile make it ideal for all kinds of lighting environments.
Its rectangular shape goes particularly well with angular luminaires – although using a round light with a square profile also creates a nice contrast. It’s a win-win situation. Luminaires can be attached either to an arm or directly to the top of the pole.
We recommend Koli for
- parks and gardens
- squares
- city centres and pedestrian/cycle lanes
- residential areas
- parking areas
Download product card Share link to email Report an error
Share this article
Technical specs
Weight (kg)
174
Material
wood/steel
Pole shape
conical
Lighting height (m)
10
Shaft top diameter (mm)
120
Arm/cross arm type
no arm
Spigot diameter (mm)
60/76
Embedding (mm)
800
Base embedding diameter (mm)
168
Base diameter (mm)
200
Base height (mm)
1600
Door width x height (mm)
100x500
Connection compartment internal dimensions (mm)
95x160
Distance door bottom to ground (mm)
500
EN40 capacity FI (22 m/s, CAT2, class A) m²
0,66
Foundation
Foundation with embedding
Embedding 800 mm
For example, we recommend the following Lujabetoni concrete bases for this product
| Product type | Electrical number | |
|---|---|---|
| Option 1 | RBJ-4.8B | 4607278 |
| Option 2 | RBJ-4.8 RST | 4607219 |
| Rubber protector for this pole and base |
235/145K | 4607395 |
Foundation with flange plate

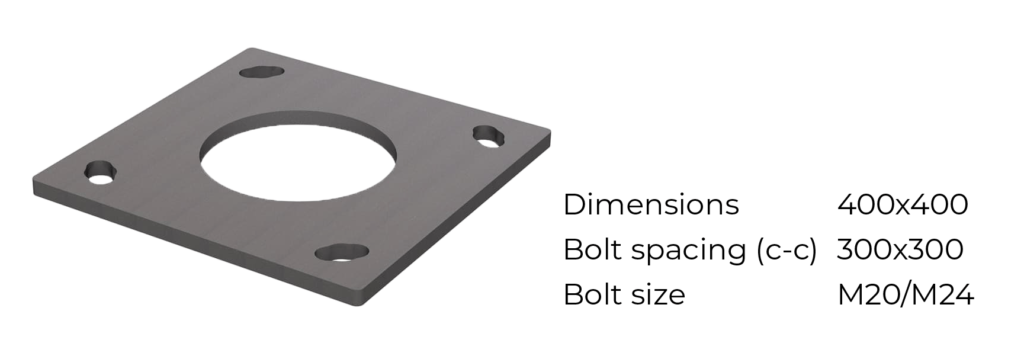

We recommend Tehomet flange c-c 300 for this product
Surface treatment
Surface treatment of wooden parts
The long service life of wooden poles requires a proven surface treatment. We use a surface treatment system developed by the Finnish Teknos. Below you will find samples of the standard colors of Tehomet’s wooden light poles.
Read more about wood surface treatment on the Wood Protection and Surface Treatment page.
Surface treatment of steel parts
Steel parts are galvanized according to international standard SFS-EN ISO 1461, layer thickness typically <90 μm.
You can see the standard colors of the metal parts of the wooden light poles below. Read more about our painting service on the Painting Service page.
