Ruka Loimu 5
Electrical number: -
Product group: Decorative wooden poles
Product number: Ruka Loimu 5
The play of light and shadow on a wooden surface
Ruka Profile is a non-tapering, square wooden pole that can be given a whole new look by planing a pattern onto some or all of its sides. You can choose a profile from our collection of concave or convex grooves, or design a unique profile to suit your own project.

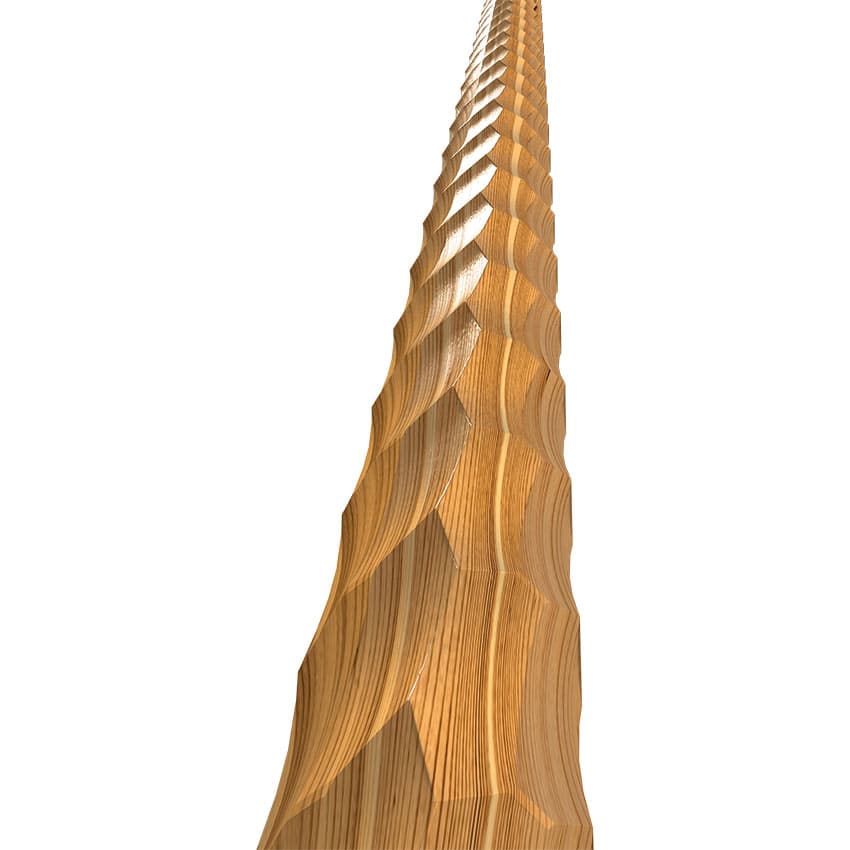

Ruka Loimu takes special effect surfaces to a whole new level. Loimu’s unique 3D surface patterns are created using CNC-machining, in which the pattern is cut directly into the glulam surface. This pattern can be anything from a small decorative motif on part of the pole to a design that covers the pole’s entire surface. Ruka Loimu poles are available with square, conical square or rectangular cross sections.

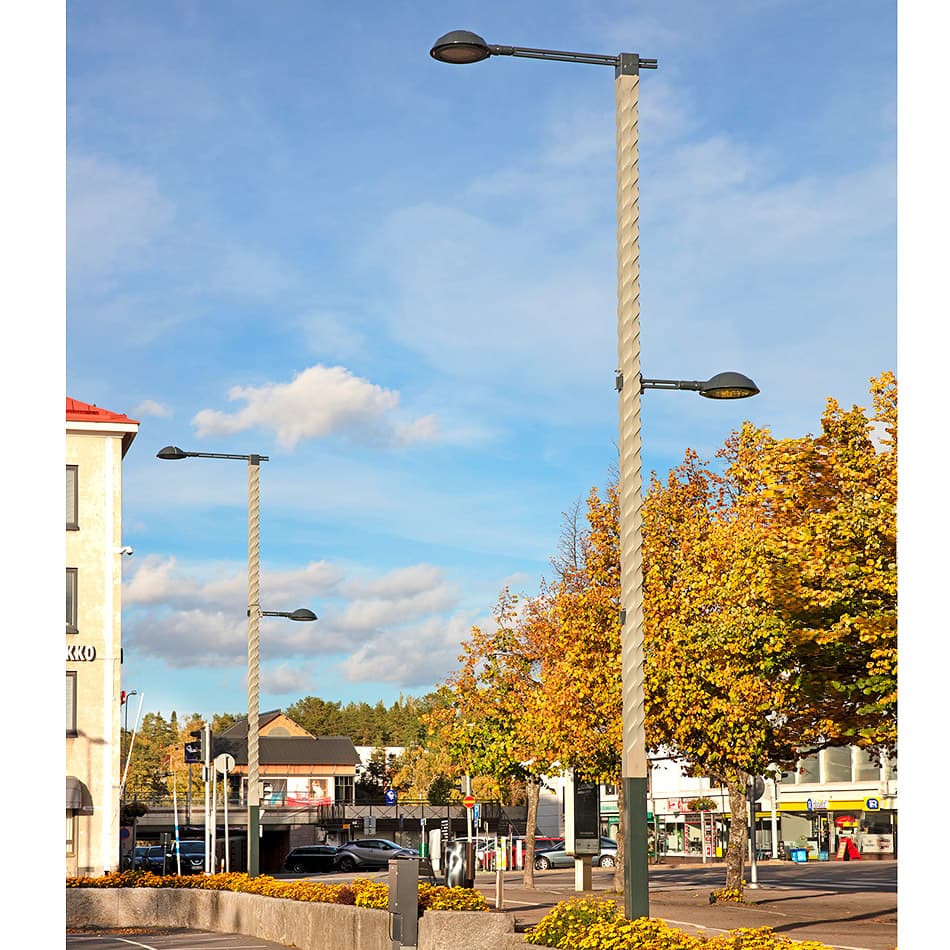

Both the planed Ruka Profile and CNC-machined Ruka Loimu create an exciting play of light and shadow on the pole’s surface – during both the day and night.
We recommend Ruka Profile and Ruka Loimu for
- parks and gardens
- squares
- city centres and pedestrian/cycle lanes
- residential areas
- urban streets and roads
- parking areas
And as with customisations for any other Tehomet products, our professional sales team can help you choose the right product. You can find our sales team’s contact details on the “Contact Us” page.
Download product card Share link to email Report an error
Share this article
Technical specs
Weight (kg)
67
Material
wood/steel
Pole shape
cylindrical
Lighting height (m)
5
Shaft top diameter (mm)
140
Arm/cross arm type
no arm
Spigot diameter (mm)
60/76
Embedding (mm)
600
Base embedding diameter (mm)
114
Base diameter (mm)
140
Base height (mm)
1300
Door width x height (mm)
85x400
Connection compartment internal dimensions (mm)
80x105
Distance door bottom to ground (mm)
500
EN40 capacity FI (22 m/s, CAT2, class A) m²
1,60
Foundation
Foundation with embedding
Embedding 600 mm
For example, we recommend the following Lujabetoni concrete bases for this product
| Product type | Electrical number | |
|---|---|---|
| Option 1 | RBJ-3B | 4607233 |
| Option 2 | RBJ-3 RST | 4607207 |
| Rubber protector for this pole and base |
235/103K | 4607386 |
Foundation with flange plate
Flange
We recommend Tehomet flange c-c 200 for this product
Surface treatment
Surface treatment of wooden parts
The long service life of wooden poles requires a proven surface treatment. We use a surface treatment system developed by the Finnish Teknos. Below you will find samples of the standard colors of Tehomet’s wooden light poles.
Read more about wood surface treatment on the Wood Protection and Surface Treatment page.
Surface treatment of steel parts
Steel parts are galvanized according to international standard SFS-EN ISO 1461, layer thickness typically <90 μm.
You can see the standard colors of the metal parts of the wooden light poles below. Read more about our painting service on the Painting Service page.
