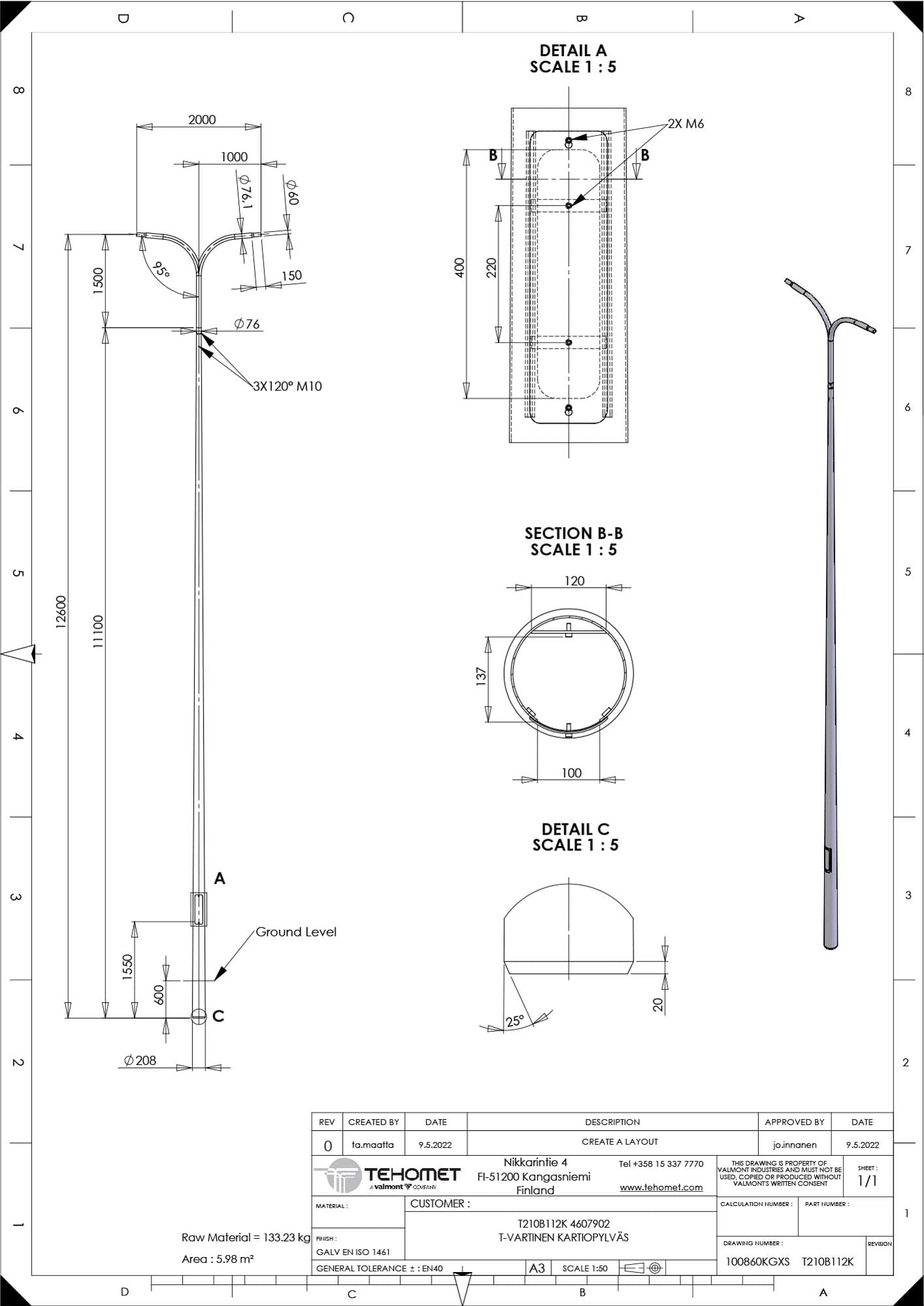

T210B112K
Electrical number: 4607902
Product group: Conical poles
Product number: T210B112K
Tehomet conical poles
Tehomet’s conical poles offer a modern solution for road and street lighting. Their conical shape ensures an optimal ratio between the pole’s load capacity and its aesthetic appearance.
Standard-compliant conical poles have a base chamfer to facilitate installation and centering in a prefabricated foundation. The base chamfer also evenly distributes loads from the steel to the concrete.
Seamless conical shafts guarantee a visually flawless solution, and especially when the poles are painted or thermoplastic coated.
Their simple and stylish shaft can be easily paired with a broad range of arms and luminaries of various styles.
Dimensioning of products: standard SFS-EN 40-3-3
Manufacture of products: standard SFS-EN 40-5
Raw material: low-silicon steel (Si + P ≤ 0.04%)
Galvanizing: international standard SFS-EN ISO 1461, layer thickness typically <90 μm.
Luminaire fitting for conical poles: diameter 60 mm and length 100 mm.
Download product card Share link to email Report an error
Share this article
Technical specs
Weight (kg)
142
Material
steel
Pole shape
conical
Lighting height (m)
12
Shaft top diameter (mm)
76
Arm/cross arm type
two-armed
Arm outreach/cross arm width (mm)
1000
Arm diameter (mm)
76
Spigot diameter (mm)
60
Embedding (mm)
600
Base diameter (mm)
208
Door width x height (mm)
100x400
Connection compartment internal dimensions (mm)
90x125
Distance door bottom to ground (mm)
950
EN40 capacity FI (21 m/s, CAT2, class A) m²
0,19
Foundation
Foundation with embedding
Embedding 600 mm
For example, we recommend the following Lujabetoni concrete bases for this product
| Product type | Electrical number | |
|---|---|---|
| Option 1 | RBJ-6B | 4607287 |
| Option 2 | RBJ-6 RST | 4607222 |
| Rubber protector for this pole and base |
360/187K | 4607405 |
Surface treatment
Surface treatment of metal parts
Zinc coating: international standard EN ISO 1461 (layer thickness typically <90 μm).
Read more about galvanizing our steel poles: Hot-dip galvanizing steel poles
The steel parts can be painted in standard RAL colors or with an easy-to-maintain and tough Plascoat coating. The standard colors of Tehomet’s steel lighting poles are shown on the Painting Service page.
