Modular smart poles
A smart pole is a light pole that is equipped with not only a 5G base station but also a variety of other integrations, such as sensors, cameras, precise positioning devices and charging units for electric vehicles. Modular smart poles can combine several different functionalities in accordance with the site’s requirements. The modular structure of our smart pole product family enables us to provide poles of various sizes and a range of device integrations and digital services to suit each site.
SMART.MAX – Innovative modular structure
As its name suggests, SMART.MAX – a modular smart pole is made up of modules that can be combined to provide the optimal package for each site.
Innovative structures and cable solutions enable the modules to be combined as easily and seamlessly as possible. Each module has a standard interface for different voltages and data, which enables the modules to be freely placed and replaced anywhere within the pole’s structure throughout its entire lifecycle.
The modular structure consists of three basic elements:
- Base sections
- Extension modules
- Functional modules
The majority of the smart pole network consists of two or three functionalities, such as smart lighting combined with the opportunities afforded by cameras or environmental monitoring.
Poles that combine several different technologies can be placed in the center of strategically important locations, such as junctions and parks.

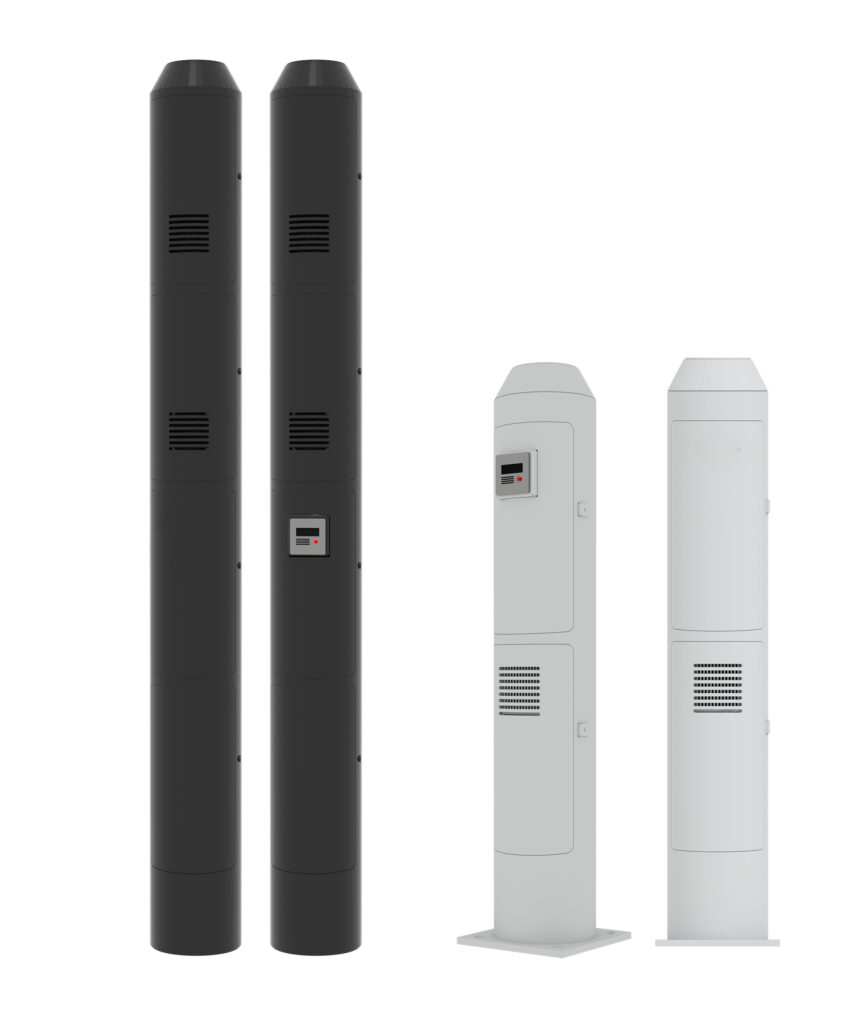

Base sections heights are 1,8 and 3 meters.
The base sections come in two sizes. The shorter base model is suitable for limited functionality, while the taller model is required for sites that use multiple modules, base stations or backup battery.

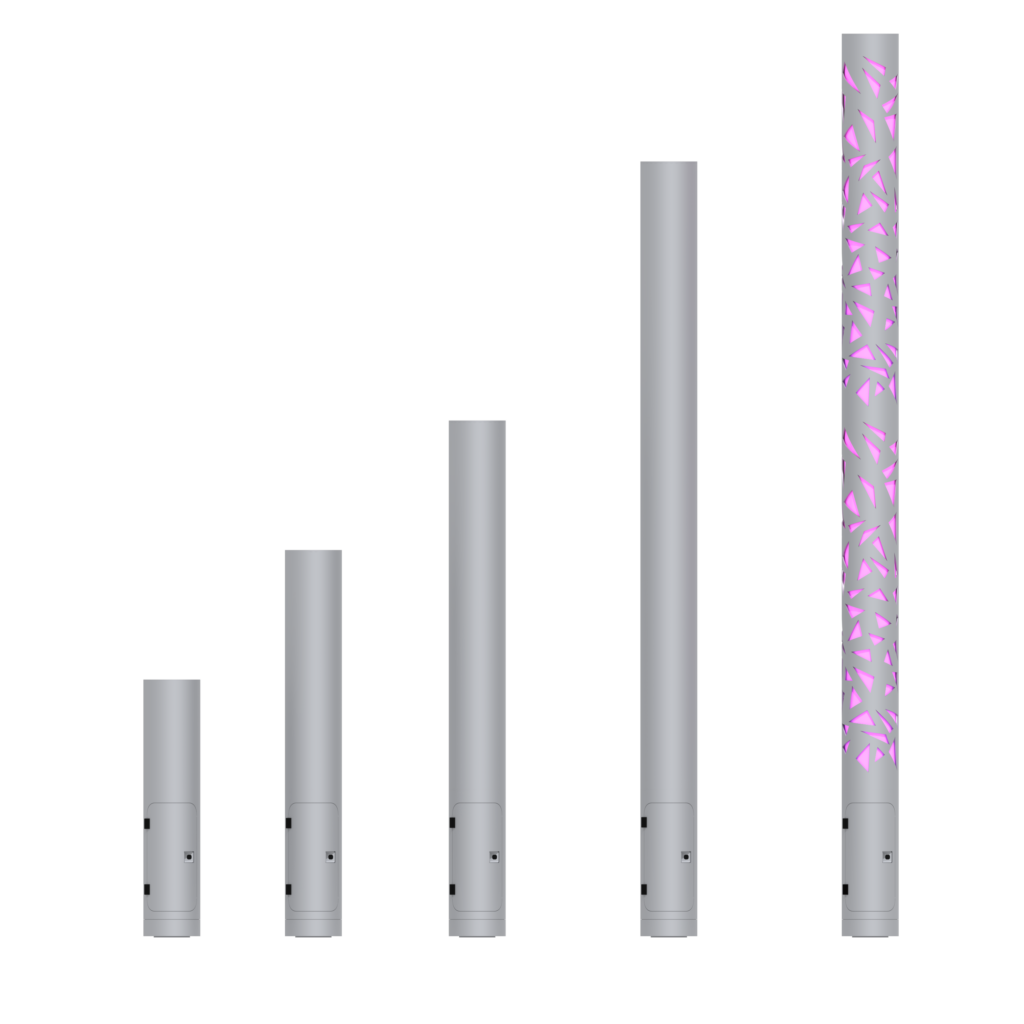

Extension module heights from 0,5 to 4 meters.
The extension modules will determine the height of the pole in accordance with the lighting plan. If necessary, you can customise the extension modules to create some very distinctive poles.

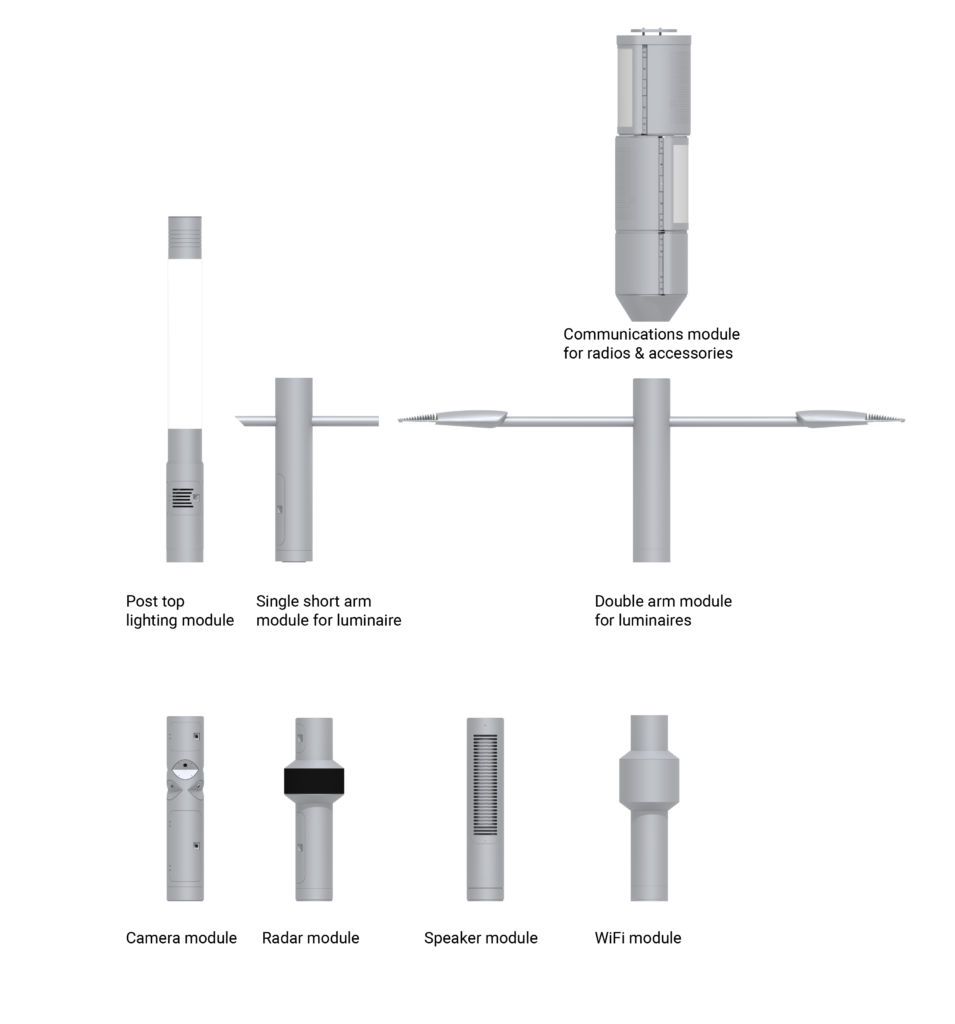

Functional module heights from 0,5 to 1,5 meters.

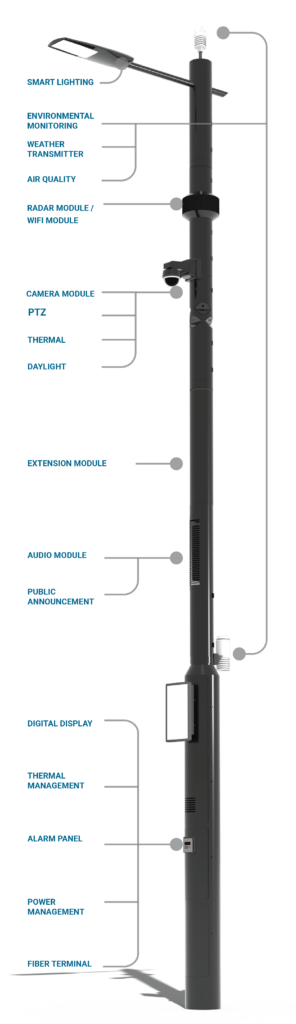

The functional modules will provide the foundation for a variety of smart city services. Depending on the site’s requirements and the location of the pole, they may include:
- Camera module
- Radar module
- Solar module
- Audio module
- Wifi module
- Comms module (5G)
- Lighting modules
The module’s structure also enables a variety of external devices to be attached to the pole, such as air quality sensors, weather transmitters, external cameras, lidars (laser scanners), digital displays or even signposts.
The lighting modules can use all commercially available luminaires. The spigot adapters and arms will be specified on a case-by-case basis. A variety of floodlights can also be mounted on the shaft.
For installation, a smart pole will be equipped with either an adapter for use with a traditional concrete foundation or, alternatively, a flange plate.
The result of LuxTurrim5G ecosystem cooperation
The modular smart poles are the result of a multi-year collaboration between the LuxTurrim5G ecosystem. In the Nokia-led project, Tehomet and Orbis have the main responsibility for the design and manufacture of smart poles.
The project operated during 2017-2019. It developed and piloted a high-speed 5G network with smart light poles, connecting the equipment of the actors involved in the project.
There were 26 partners in the LuxTurrim5G ecosystem.
